Cold Rolled Mild Steel Tube | CR250

Cold Rolled Mild Steel Tube | CR250 Specifications

New Zealand made, manufactured from Australian made, high grade cold rolled and batch-annealed steel coil.

CR250 tube provides an exceptional surface finish, superior dimensional accuracy, and a high level of formability across a wide range of thinner walled profiles.
Well suited to furniture components, healthcare, lightweight frames, brackets, and fabricated assemblies that depend on predictable formability, accurate fit-up, and stable dimensions to support efficient downstream manufacturing.
As an uncoated product, it is perfect for finishing processes such as powder coating, high-gloss painting, zinc and chrome plating.

Base Material	Cold-rolled close annealed (Commercial Quality)
Yield Strength	170MPa (BM)
Tensile Strength	320 MPa (BM)
Base Standard	AS/NZS 1365:1996 (R2016), AS/NZ 1595/1998, ASTM A1008-21A
Product standard	AS 1450
Surface Finish	Higher grade Bright critical Finish
Coating Suitability	Excellent for Powder Coating, Paint, Chrome Plating, Electroplating and Hot Dip Galvanising
Standard stocked lengths	5.5m. Custom lengths available.

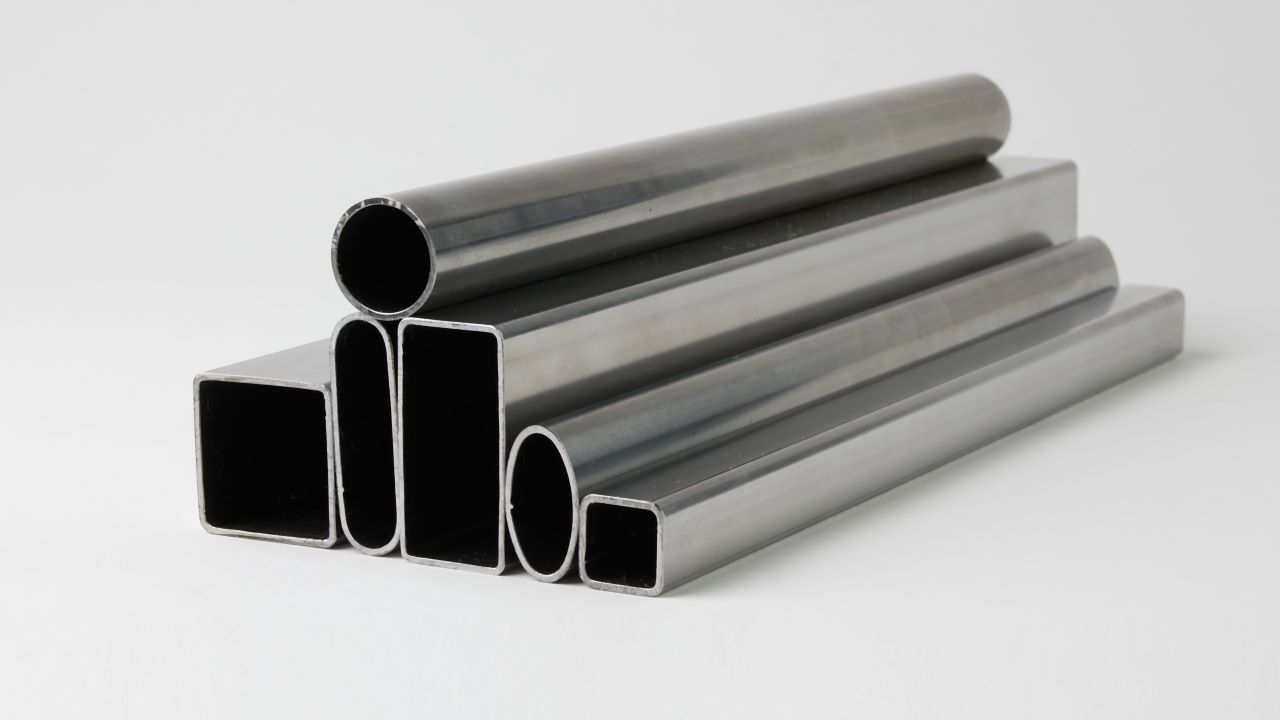

Tube Profile	Round, Square, Rectangle, Flat-Sided Oval, Oval
Tube Thickness	From 1.2mm to 2.5mm

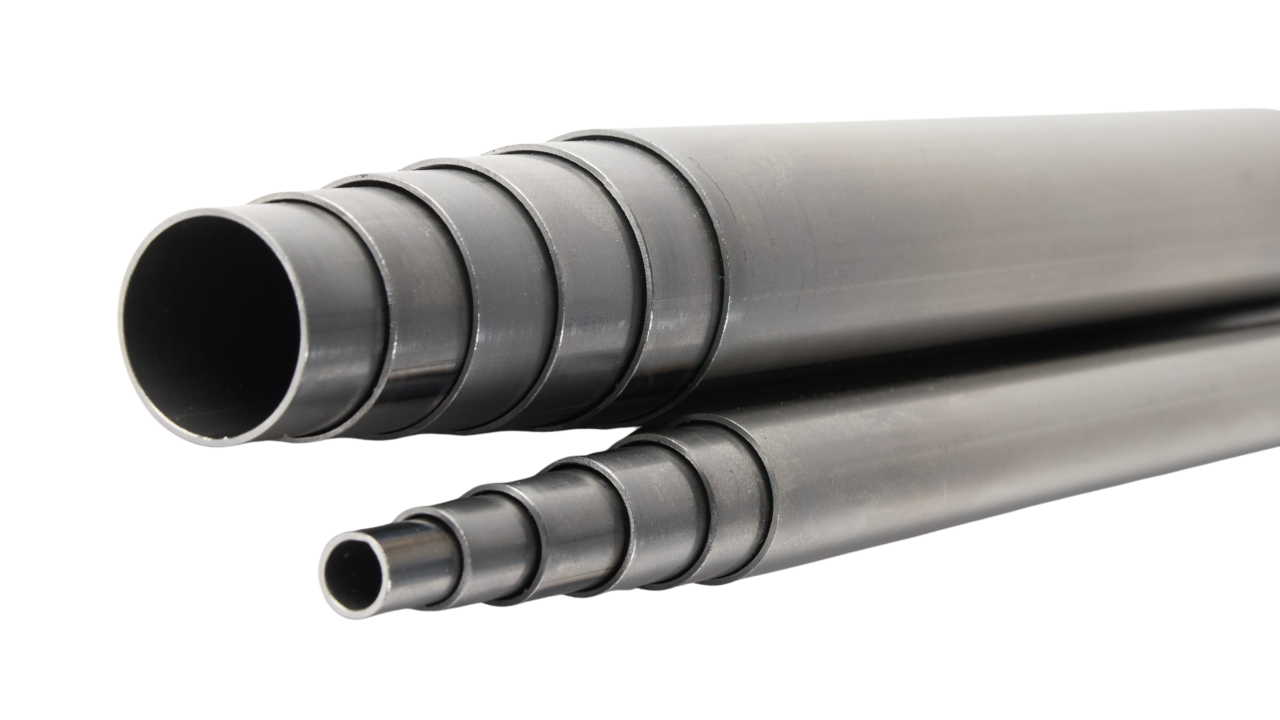

Size Range - Round	From 9.5mm – 152.4mm

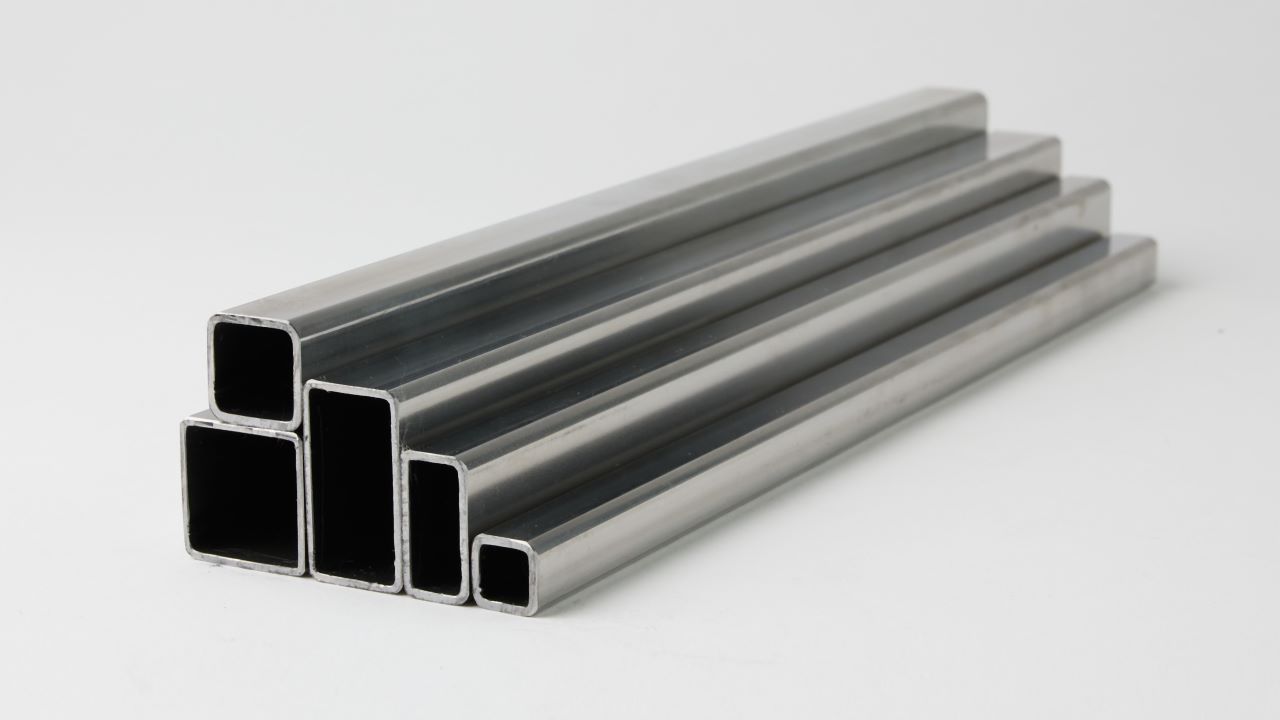

Size Range - Square	From 12.7mm to 65.0mm
Size Range - Rectangle	From 24.4x12.7 to 68.0 x 14.0
Size Range - FSO	From 25.4x15.9 to 97.0x42.0
Size Range - Oval	From 19.0 x 12.0 to 59.0 x 30.0
Typical Applications:	Furniture, Displays, Automotive

Yield strength	Tensile strength	EI % on Lo=50mm
170 MPa	320 MPa	43

Size (mm)	Product Type & Gauge (mm)	Finish	Nom Linear mass (kg/m)					Length per pack
Size (mm)	CR250	Finish	1.2	1.4	1.6	2.0	2.5	Length per pack
9.5	1.2, 1.6		0.25	0.28	0.31			100
12.7	1.2, 1.6, 2.0		0.32	0.39	0.44	0.52		100
15.9	1.2, 1.4, 1.6, 2.0		0.43	0.50	0.57	0.67		100
19.1	1.2, 1.4, 1.6, 2.0		0.51	0.61	0.68	0.83	1.02	100
22.2	1.2, 1.4, 1.6, 2.0		0.61	0.72	0.81	0.98	1.21	100
25.4	1.2, 1.4, 1.6, 2.0		0.71	0.83	0.93	1.15	1.41	100
28.6	1.2, 1.4, 1.6, 2.0		0.78	0.94	1.07	1.32	1.69	48
31.8	1.2, 1.4, 1.6, 2.0		0.87	1.04	1.17	1.43	1.80	48
34.9	1.2, 1.4, 1.6, 2.0		0.99	1.15	1.30	1.60	2.00	48
38.1	1.2, 1.4, 1.6, 2.0		1.07	1.22	1.36	1.78	2.13	48
41.3	1.2, 1.6, 2.0		1.15	1.38	1.52	1.89	2.42	48
44.5	1.2, 1.6, 2.0		1.06	1.49	1.65	2.03	2.52	48
47.6	1.2, 1.6, 2.0		1.35	1.57	1.78	2.19	2.78	48
50.8	1.2, 1.4, 1.6, 2.0		1.42	1.67	1.88	2.35	3.02	48
54.0	1.6		1.56	1.82	2.03	2.53	3.14	48
57.2	1.2, 1.6, 2.0		1.61	1.89	2.14	2.66	3.33	24
60.3	1.2, 1.6, 2.0		1.72	2.00	2.28	2.80	3.60	24
63.5	1.2, 1.6, 2.0		1.71	2.09	2.39	2.99	3.79	24
69.9	2.0			2.35	2.67	3.23	4.16	24
76.2	1.6, 2.0			2.56	2.89	3.59	5.47	24
88.9	1.6, 2.0				3.44	4.28	5.33	10
101.6	1.6, 2.0				3.95	4.91	6.11	10
127.0	1.6, 2.0				4.87	6.04	7.68	8
152.4	2.0				5.87	7.57	9.24	8

Size (mm)	Product Type & Gauge (mm)	Finish	Nom Linear mass (kg/m)					Length per pack
Size (mm)	CR250	Finish	1.2	1.4	1.6	2.0	2.5	Length per pack
12.7x12.7	1.2, 1.4, 1.6		0.41	0.48	0.53			100
15.9x15.9	1.2, 1.4, 1.6, 2.0		0.51	0.60	0.66	0.83		100
19.1x19.1	1.2, 1.4, 1.6, 2.0		0.64	0.75	0.83	1.00		100
22.2x22.2	1.2, 1.4, 1.6, 2.0		0.78	0.89	1.03	1.25		100
25.4x25.4	1.2, 1.4, 1.6, 2.0		0.89	1.03	1.17	1.42	1.75	100
31.8x31.8	1.2, 1.4, 1.6, 2.0		1.11	1.31	1.48	1.79	2.24	50
34.9x34.9	1.2, 1.4, 1.6, 2.0		1.22	1.42	1.63	2.01	2.51	49
38.1x38.1	1.4, 1.6, 2.0		1.32	1.57	1.78	2.13	2.75	49
40.0x40.0	2.0		1.43	1.67	1.89	2.26	3.06	49
50.8x50.8	1.2, 1.4, 1.6, 2.0		1.81	2.10	2.40	3.94	3.69	49
65.0x65.0	1.6, 2.0			2.78	3.08	3.58	4.78	30

Size (mm)	Product Type & Gauge (mm)	Finish	Nom Linear mass (kg/m)					Length per pack
Size (mm)	CR250	Finish	1.2	1.4	1.6	2.0	2.5	Length per pack
25.4x12.7	1.2, 1.4, 1.6		0.65	0.76	0.84	1.06		50
31.8x15.9			0.82	1.00	1.13	1.42		50
34.9x19.1	1.2, 1.4, 1.6, 2.0		0.95	1.00	1.13	1.42		50
38.1x25.4	1.6, 2.0		1.13	1.50	1.76	1.79	2.24	49
46.5x21.2	1.6		1.06	1.49	1.65	2.03	2.52	50
50.8x24.5	1.2, 1.4, 1.6, 2.0		1.35	1.62	1.82	2.25	2.78	50
50.8x31.8	1.6, 2.0		1.49	1.74	1.95	2.45	2.94	50
57.2x34.9			1.61	1.89	2.14	2.66	3.33	50
60.0x30.0	1.6		1.61	1.89	2.14	2.66	3.33	50
63.5x38.1	1.6, 2.0		1.84	2.09	2.39	2.99	3.26	50
68.0x14.0	1.6		1.43	1.67	1.91	2.39		100
68.0x43.0			1.97	2.35	2.67	3.23	4.16	50
70.0x11.0			1.43	1.67	1.91	2.39		100

Size (mm)	Product Type & Gauge (mm)	Finish	Nom Linear mass (kg/m)					Length per pack
Size (mm)	CR250	Finish	1.2	1.4	1.6	2.0	2.5	Length per pack
19.0x12.0		OV	0.43	0.50	0.56	0.67		50
25.4x15.9		FSO	0.65	0.75	0.83	1.00		50
31.8x15.9	1.2, 1.6	FSO	0.71	0.83	0.93	1.15		50
31.8x17.1	1.6	OV	0.71	0.83	0.93	1.15		50
32.0x22.0		OV	0.74	0.89	1.01	1.26		50
34.9x15.9	1.2, 1.4, 1.6	FSO	0.78	0.94	1.07	1.32		50
50.8x15.9	1.2, 1.6	FSO	1.07	1.26	1.36	1.78		50
